/PUMPSOur progressive eccentric pumps are high quality products built for a wide variety of applications.
In order to offer you the right pump, the material composition of the cascade pump is individually designed according to the existing environment.
For flow rates up to 30 m³/h, this series is a good alternative to the N series.

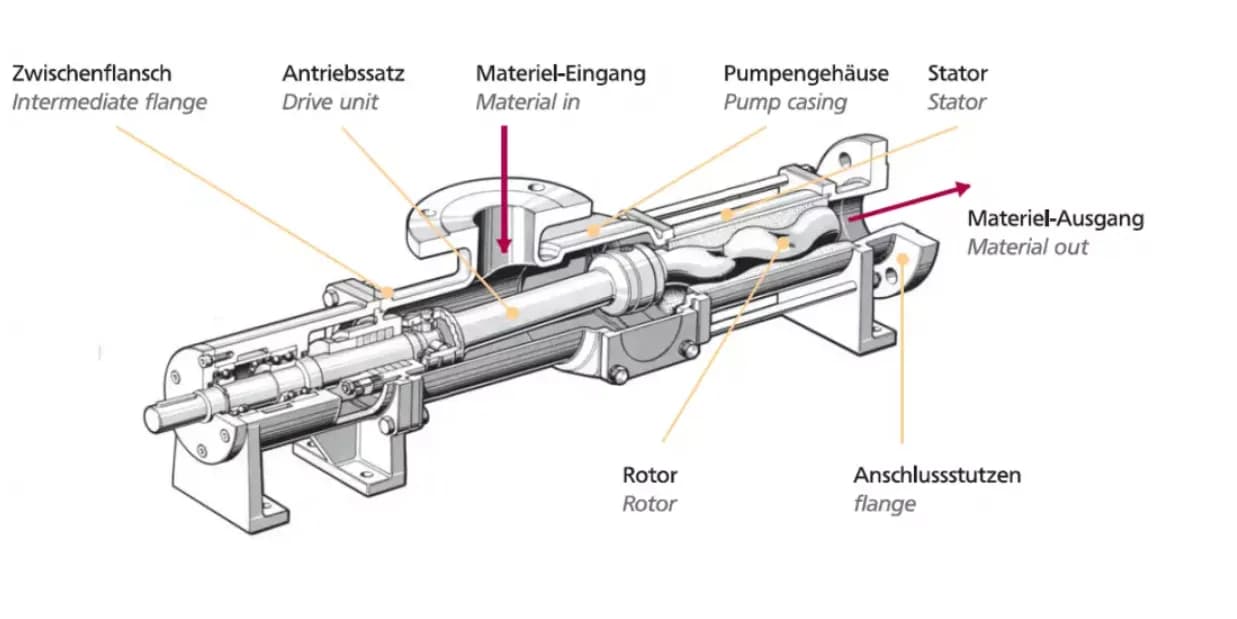

The NF progressive cavity pump is a compact and cost-effective pump that is easy to install and does not require a separate base frame. In this design, the geared motor is screwed directly to the progressive cavity via a flange.
TECHNICAL SPECIFICATIONS
| Dry Matter Ratio | Up to 15% feeding can be done |
Supply Temperature | Up to maximum 70° C |
PH value | 4,5 - 8,5 |
Particle Sizes | Depending on the rotor/stator (16 - 30 mm) |
gradual | 1 stage, up to 6 bar (multi-stage up to 16 bar on request) |
Flow Rate December | 5 -140 m3/h |
Sealing | Oil tank seal with mechanical seal (with seal on request) |
