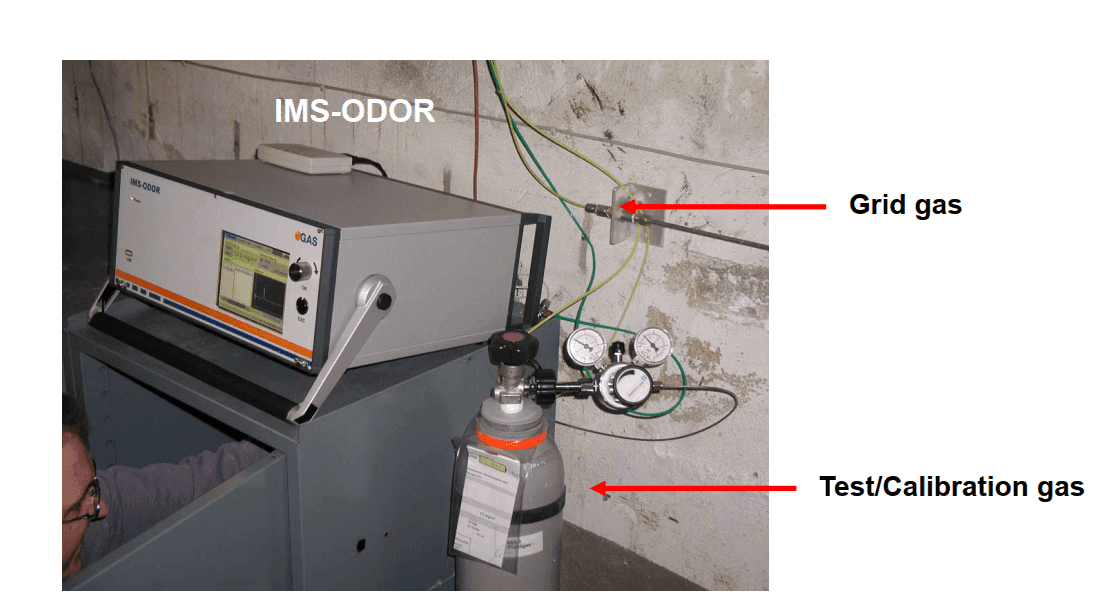

The GC-IMS-ODOR is a stand-alone instrument, which has been developed to precisely quantify the concentration of Gasodor®-S-Free®, THT or TBM in natural gas.
Thanks to the menu accessible via the 6.4" TFT touch screen, it allows you to safely perform on-site tests manually, even by non-specialists.
Approximately 4-minute values are automatically stored on the integrated compact flash card. At the end of the measurement, they can be downloaded to a PC via a USB memory stick or Ethernet cable connection.
The reports are available as user-friendly excel sheets or directly as pdf.can be printed from files
December 24/7-based online monitoring tool to automatically test the odor concentration at user-defined intervals.
TECHNICAL SPECIFICATIONS
| Working Principle | Gas Chramotograph-Ion Spectrometer |
Measurement Range | S-Free: 4.0-40mg/m3(RS:0.1 ) THT: 4.0-40mg/m3(RS:0.1 ) TBM: 0.1-10mg/m3(RS:0.1 ) Pressure: 10 mbar- 4 bar |
Display | 6.4 TFT touch screen |
Data Storage | 4GB or compact flash card |
Interface | RS232, USB, Ethernet, 4-20mA |
Power Supply | 100-240V AC, 24 V DC/5A |
