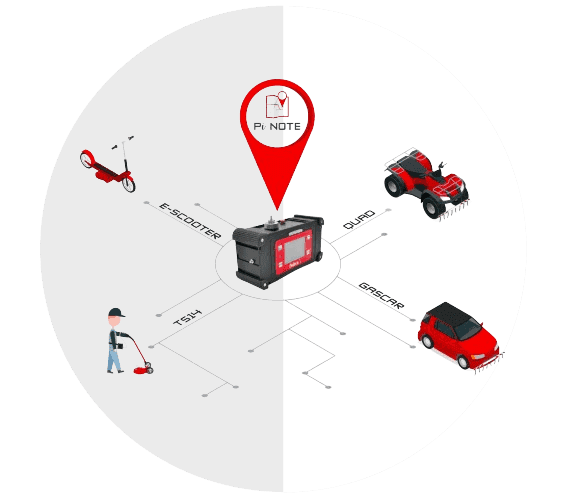

In the field of pre-location, the Laser HUNTER can be used as the core of our Modular System.
It’s a highly sensitive and selective gas detection device for the systematic pipe network inspection of buried gas pipelines. If desired, the device can be equipped with additional sensor technology to enable further applications in the course of pipe network inspections.
Inspection of underground pipes
Inspection of accessible pipes in buildings
Inspection of accessible pipes on plants, etc.
Inspection of ground soil for pinpointing (optional)
Purging of gas pipelines (optional, only in combination with pinpointing)
Gas analysis (with dual laser module)
TECHNICIAL SPECIFICATIONS
| Display | LCD graphic display 128 x 64 Pixel, illuminable |
Power Supply | Lithium-Ionen 7,2 V 6.700 mAh |
Charging | Charging cradle supplied by 12 Volt |
| Operating | 10 hours (without backlight) |
Measurement Principle | Laser, infrared*, electrochemical* |
Measurement Range | 0 - 1,000 ppm CH4, Resolution: up to 0.5 ppm |
Pump Capacity | > 80 l/h, > 300 mbar |
Protection Class | IP 52 |
LASER HUNTER
the only gas analyzer that can take measurements including heating in 40 seconds
Without the need for extra pumps in small type vehicles
possibility of leak detection
A free global software program suitable for every infrastructure
While scanning with the vehicle, go down to the field and at the same time
the only system where you can do ethane analysis
Modular easy installation without requiring technical service
Automatic stop function of the system against water and dust
