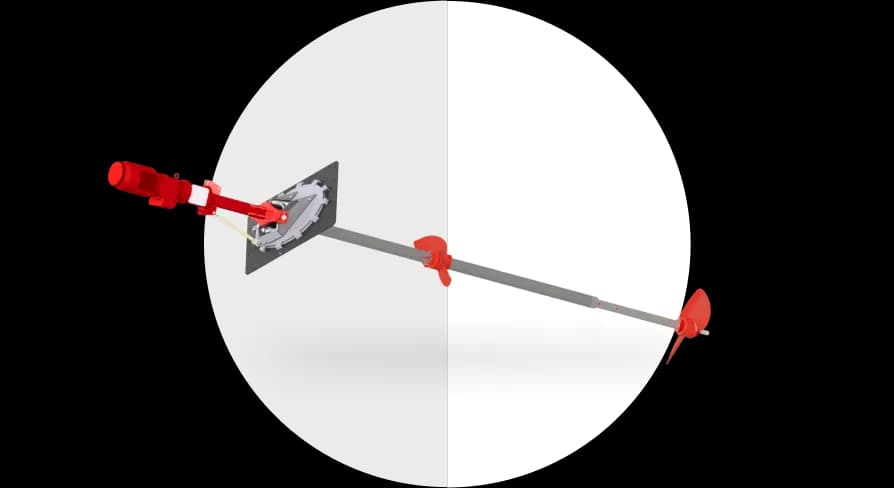

Armatec twin mixer, with its 2 or 3 impeller structure, is suitable for installation on the walkway in rebarters and provides vertical mixing.
it has a length of 5.5 meters in the refiner and destroys the stratification at the liquid level of the refiner and at the same time mixes the middle part with the lowest impeller.
Since one propeller pushes while the other pulls back, it provides a complete mix and eliminates the foam problem.
| TECHNICAL SPECIFICATIONS | EXPLANATION |
|---|---|
Engine Power | 15 kW/18.5Kw/22 Kw |
Impeller Diameter | 850 mm – 1000 mm |
Propeller Material | Steel |
Propeller Speed | 201 rpm |
Mixer Dimensions | The part of the shaft inside the rebar is 4.5 – 5.5 meters, depending on the model |
Axial Thrust Force | 15 KW: 3200 N 18.5KW: 3700N 22 KW: 4300N |
Mixing Volume | 8000 m3 - 9500 m3 |
Maximum Operating Temperature | 55 |
Ph Value | 6.5- 8.5 |
Dry Matter Ratio | up to 13% |
Installation Location | it is convenient to install up to 8 meters below the digester liquid level |
Opening The Tank | 1.15m x 1.15m |
Digester Intra-Movement | Horizontal/Vertical adjustment ± 45° top connection or hydraulic adjustment with the possibility of preset horizontal adjustment |
Protection Class | II 2G Ex db h IIB T3Gb |
TWIN
Single System with Double Propeller Long Shaft
Horizontal/Vertical adjustment ±45°
Low rpm high volume mixing design
5.5 Vertical Mixture In The Refiner
The Only System That Does
201 rpm propeller speed
Design that Eliminates Stratification at the Liquid Level
